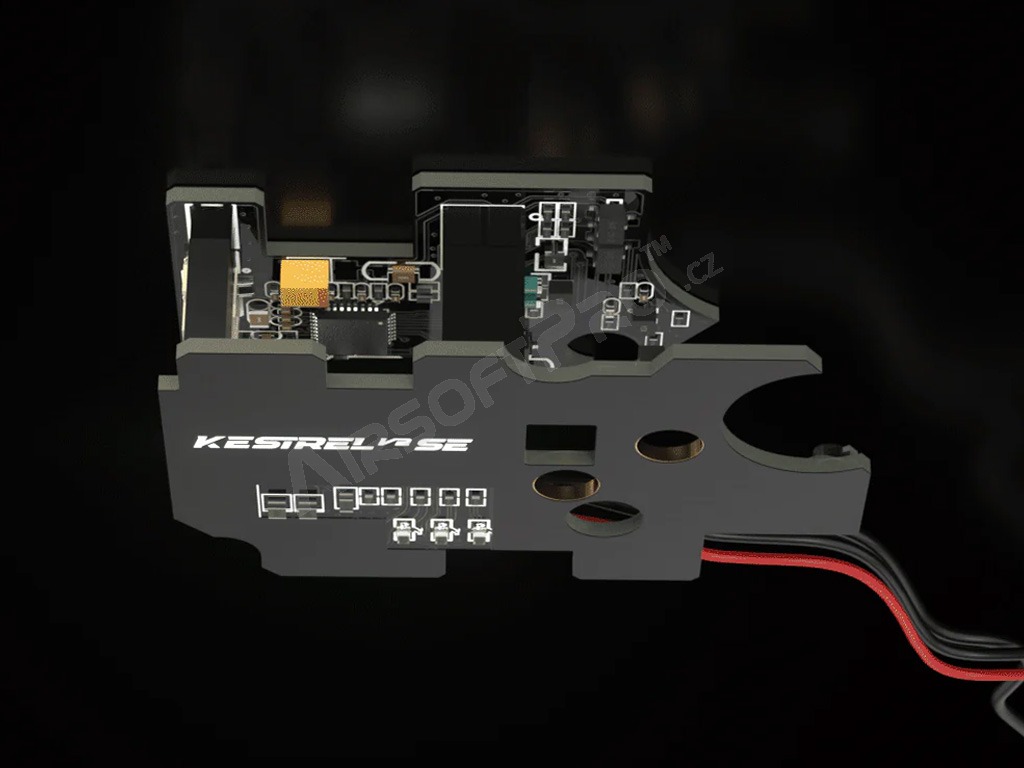

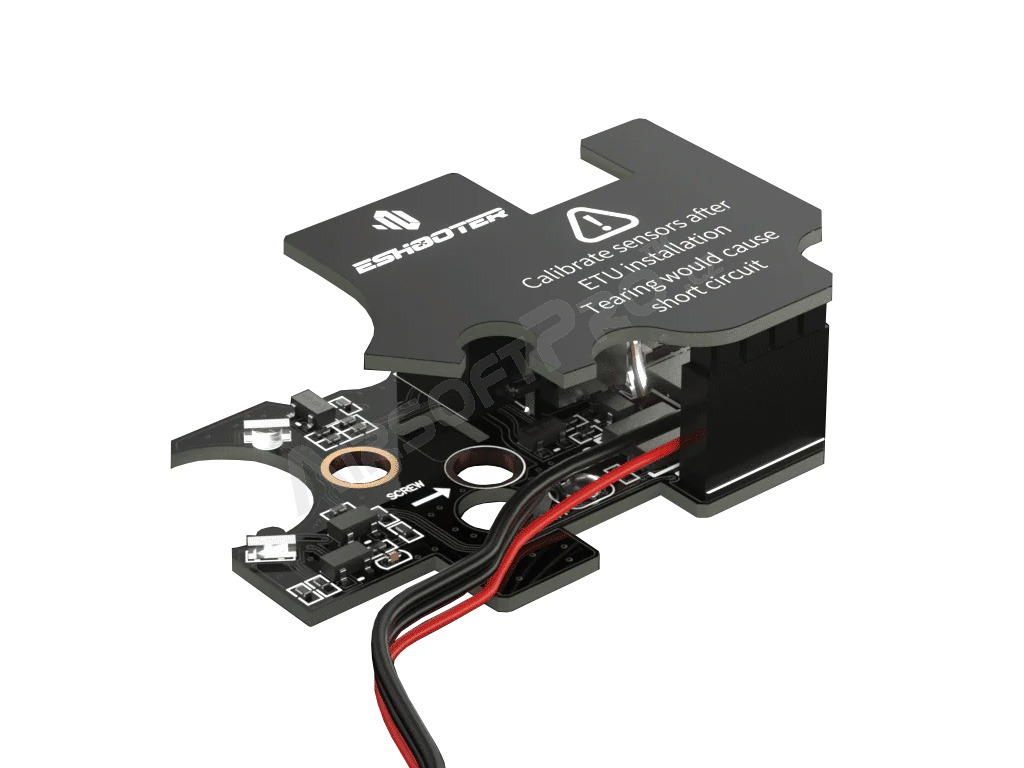

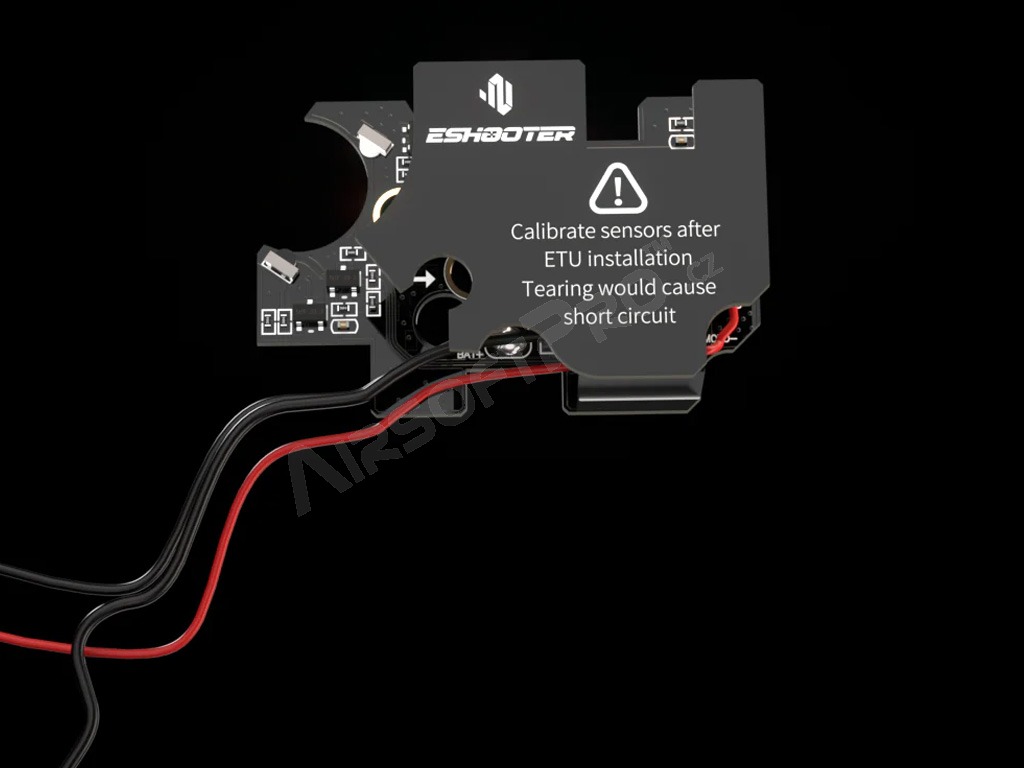

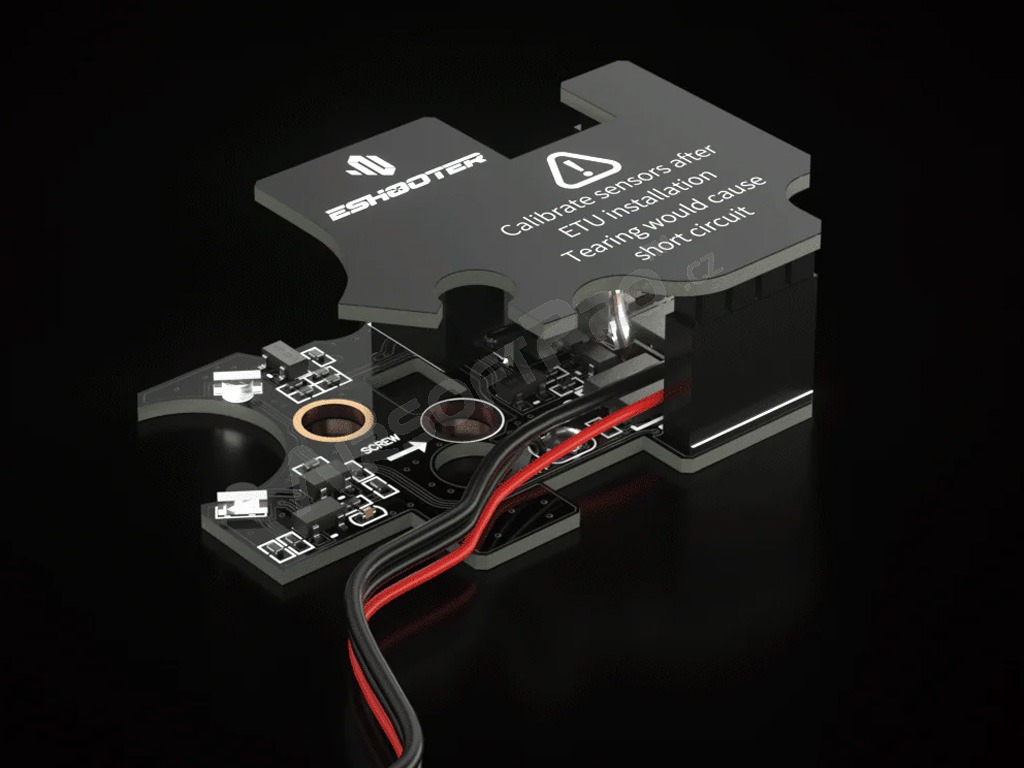

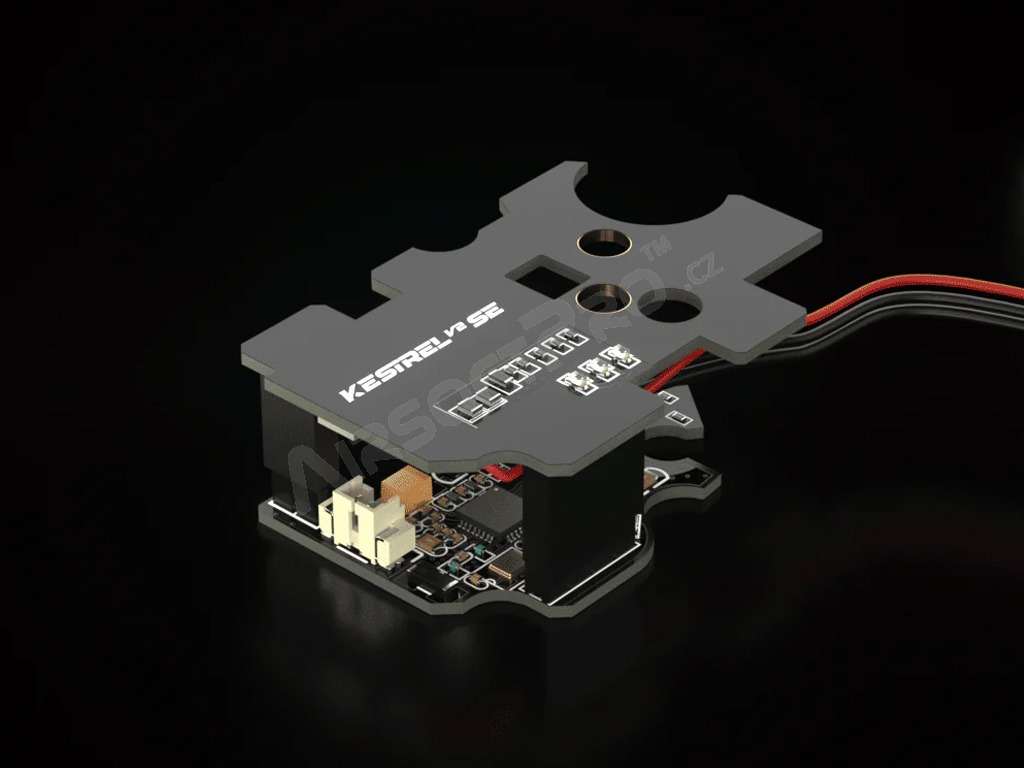

Electronic trigger unit Kestrel V2 SE - rear wiring

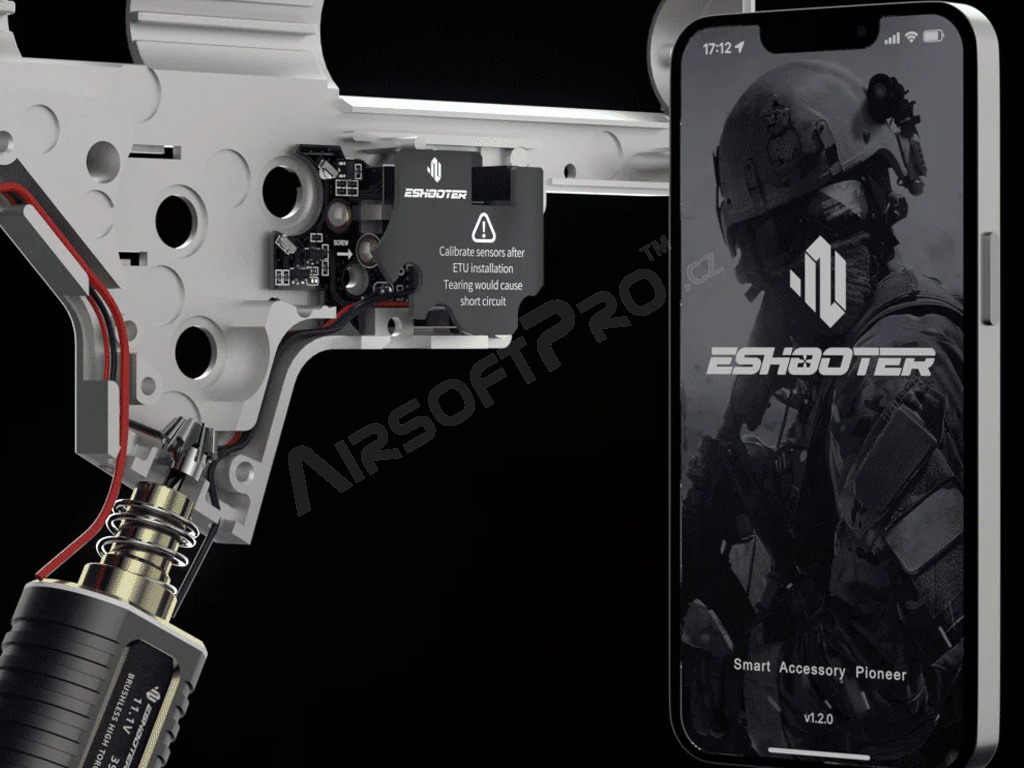

The Kestrel V2 SE is a newly designed electronic trigger unit with full support for the Eshooter App. Download the app, manage shooting modes, update firmware, and customize the behavior of the weapon according to your preferences.

Thanks to the reliable mechanical trigger switch and smart control via phone, you have your AEG under complete control - without complicated testing.

FEATURES

• Precise pre-cocking Adjustable 200 levels for extremely fine-tuning the trigger response.
• Support for brushless motors Compatible with powerful brushless motors - SOLINK motors recommended.
• Various shooting modes Optional SAFE, SEMI, BINARY, BURST, AUTO, and SNIPER - customize the behavior of the weapon as needed.
• Personal settings Save up to 3 custom profiles in the app and switch quickly with the trigger (3s in SAFE position).
• ROF Control Adjust the rate of fire, even when using powerful batteries.

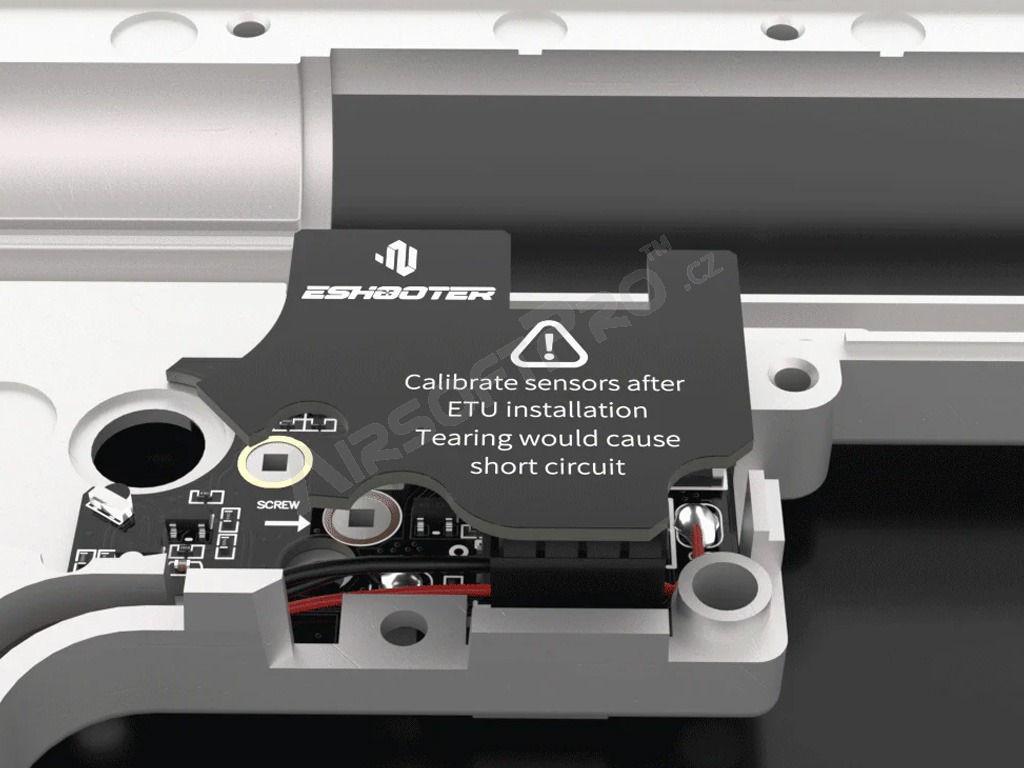

• Sensor calibration To ensure the accuracy and reliability of every shot.
• Battery protection Monitors voltage and warns of low battery (LiPo/LiFe).
• Active Brake Intelligent braking to increase the life of the piston and gears.
• Cycle detection Automatic detection of cycle completion - compatible with DSG, HSG and standard gears.
• Firmware update via app Free and convenient thanks to OTA (Over-the-Air).
• Smart Fuse Short circuit, overload and overheating protection – protects the battery, motor and controller.
• Sleep Mode Automatically switches to sleep mode after 1 hour of inactivity – saves battery, ideal for MILSIM games.
• MOSFET Direct power transfer from battery to motor for higher cadence and fast response.
• Motor stall protection Protects the gearbox in case of motor malfunction.
• Sniper Delay Adjustable shot delay (0.5s / 1s / 2s / 3s) for more accurate shooting at a distance.
• Durable Teflon wires Diameter over 1.5 mm2 - resistant to high temperatures, will not melt even with long-term use.

SPECIFICATIONS

• Voltage range: 3.75 - 17 V
• Current consumption: 17 mA
• Dimensions: 47.4 × 28.7 × 13.5 mm
• Weight: 27.6 g
• Relative humidity: < 80%
