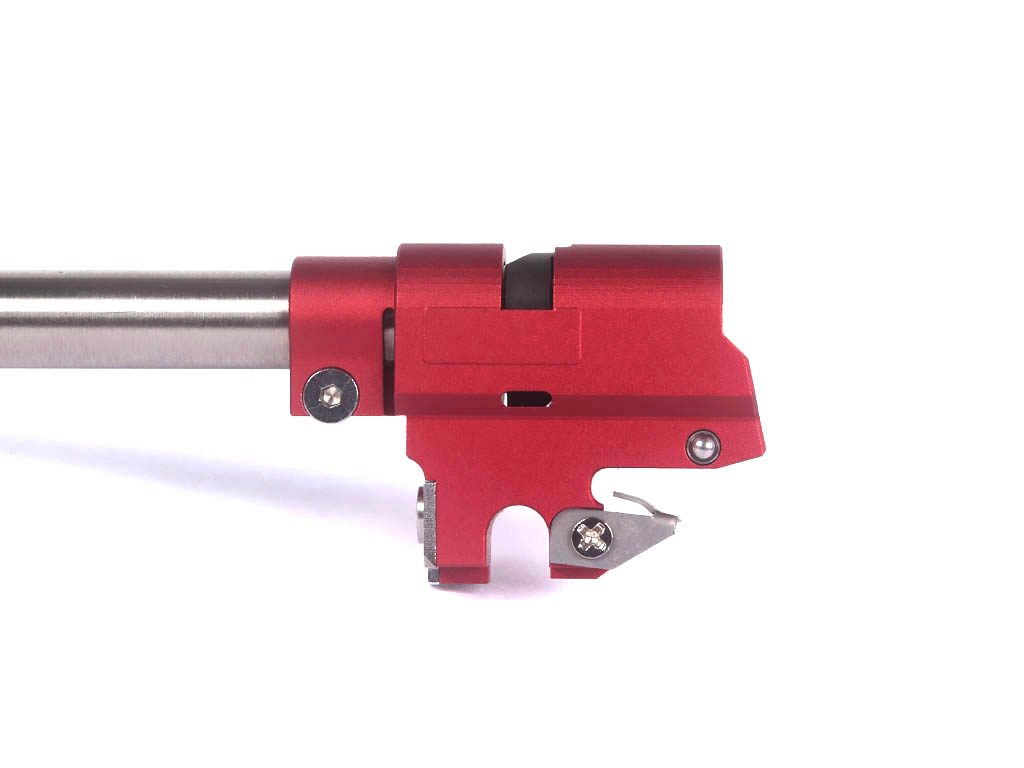

112mm S+ Omnix RETROFIT KIT for Hi-Capa / 1911

T-N.T. OMNIX Retrofit Kit Aluminum Standard S+ / 112 mm is a complete hop-up upgrade kit for gas-powered airsoft guns. The kit combines a CNC-machined aluminum OMNIX hop-up chamber with a 112 mm T-N.T. precision inner barrel and TL-HOP 60° bucking. The system is compatible with standard GBB inner barrels and MARUI-spec GBB buckings and barrels.

OMNIX features T-N.T.'s Tri-Dynamic Balance System, combining three principles – balance, buffering and shock absorption. Its dual-direction damping structure together with elastic L-shaped components enables automatic multi-axis re-centering. This helps eliminate looseness, unwanted movement and vibration, providing a stable assembly even during dynamic operation.

The T-Lock system with dual-side clamping ensures precise coaxial alignment of the inner barrel and hop-up bucking. T-Lock supports both wide-slot and narrow-slot inner barrels, providing compatibility with a wide range of standard GBB barrels.

Elastic L-spacers allow the assembly to adapt to various mid-frame specifications while maintaining precise horizontal alignment and quick-detach capability.

The hop-up chamber is fully CNC-machined and equipped with a steel TDC stepless micro-adjustment system. The design provides uniform downward pressure on the hop-up bucking and allows precise adjustment. Anti-slip-treated adjustment screws resist loosening caused by vibration, helping the system maintain a stable setting even during prolonged firing.

Main features:
- Tri-Dynamic Balance System – combines balance, buffering and shock absorption.
- Automatic multi-axis re-centering – dual-direction damping and elastic L-spacers allow the system to automatically re-center in multiple directions.
- Reduced looseness, vibration and unwanted movement – helps provide a more stable assembly.
- T-Lock system – supports both wide-slot and narrow-slot inner barrels.
- Dual-side clamping – helps ensure precise coaxial alignment of the inner barrel and hop-up bucking.
- Elastic L-spacers – adapt to various frame specifications while maintaining precise alignment.
- TDC stepless micro-adjustment – steel adjustment mechanism provides precise and uniform pressure on the hop-up bucking.
- Anti-slip screw design – resists adjustment loosening caused by vibration.
- Fully CNC-machined construction – precision-machined components for reliable operation.
- Aluminum Standard Edition – standard OMNIX version featuring an aluminum hop-up chamber.

Package contents:
- T-N.T. S+ 112 mm precision inner barrel – 1 pc
- T-N.T. TL-HOP GBB 60° bucking – 1 pc
- T-N.T. OMNIX Aluminum Standard hop-up chamber assembly – 1 pc
- T-N.T. steel adjustment ring – 1 pc
- T-N.T. stainless steel guide rod screw – 2 pcs
- T-N.T. T-Lock – 1 pc
- T-N.T. elastic component – 3 pcs
- 1.5 mm hex wrench – 1 pc

Compatibility:
- Compatible with all standard GBB inner barrels and buckings.
- Compatible with MARUI-spec GBB buckings and barrels.
- T-Lock supports both wide-slot and narrow-slot inner barrels.
- Elastic L-spacers allow adaptation to various frame specifications from different manufacturers.
- Inner barrels shorter than 220 mm do not feature an air cushion groove, as the shorter barrel length does not provide a significant air cushion effect.

Inner barrel:
- Length: 112 mm
- Material: bronze
- Surface finish: electroless nickel plating

Installation notes:
Due to dimensional variations and manufacturing tolerances among different brands, minor fitting adjustments or modifications may be required when installing T-N.T. upgrade kits. For optimal performance, installation by users with basic DIY experience or a professional airsoft technician is recommended.
