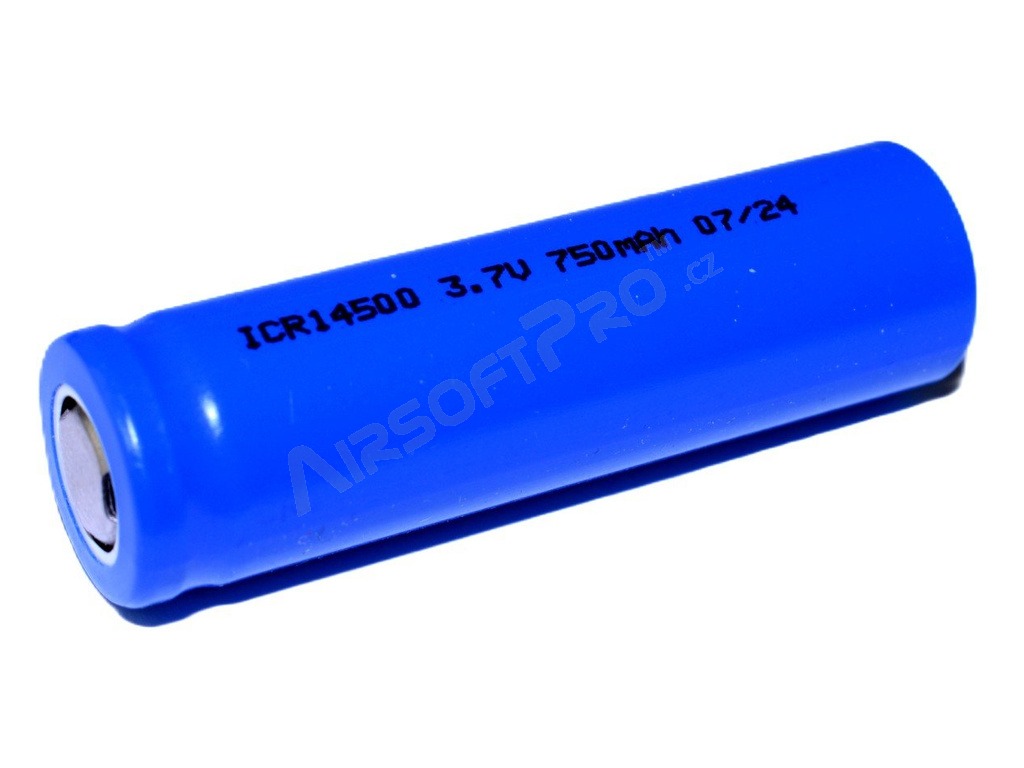

ICR14500 Lithium-Ion Rechargeable Battery 750 mAh 3.7V (Li-Ion)

The NEXcell ICR14500 rechargeable lithium-ion cell has a nominal voltage of 3.7 V and a capacity of 750 mAh. Its dimensions are approximately the same as those of a standard AA cell, but it uses Li-ion technology and has a significantly higher voltage.

This rechargeable battery is suitable for powering electronic devices that require a single 14500 / 3.7 V Li-ion cell (such as magazines for WELL WE249-S/PARA machine guns). The maximum voltage of a fully charged cell is 4.2 V.

Technical Specifications:

• Type: ICR14500
• Technology: Li-ion
• Nominal voltage: 3.7 V
• Typical capacity: 750 mAh
• Minimum capacity: 730 mAh
• Maximum charging voltage: 4.20 V
• Standard charging method: CC/CV
• Maximum discharge current: 2.25 A
• Diameter: approx. 14.5 mm
• Length: approx. 50 mm
• Weight: approx. 20 g

Warnings:

• Charge the battery only with a suitable charger designed for Li-ion rechargeable batteries.
• Do not use this battery as a replacement for a standard 1.5 V AA battery unless the device explicitly supports a 3.7 V Li-ion cell.
• Do not short-circuit the battery (do not connect its terminals with a wire).
• Do not throw the battery into fire or water.
• Protect the battery from mechanical damage and high temperatures.
• Follow Li-ion battery safety guidelines during use and charging.

The 14500 cell has dimensions similar to a standard AA battery, but it is not a direct replacement. The nominal voltage of a Li-ion cell is 3.7 V, compared to 1.5 V for a standard AA battery. Use only in devices designed for 14500 Li-ion cells.
